Objective
In this guide you will learn how to View, Revert and Publish a Studio Flow Revision in the new Twilio Studio Canvas.
Product
Twilio Studio
Environment
Twilio Console
Procedure
View a Studio Flow Revision
- Navigate to the Studio Dashboard in the Twilio Console by going to Products & Services > Studio > Flows.
- Select the Studio Flow you want to view; you will be taken to the EDITOR tab.
- Click on the REVISION HISTORY tab.

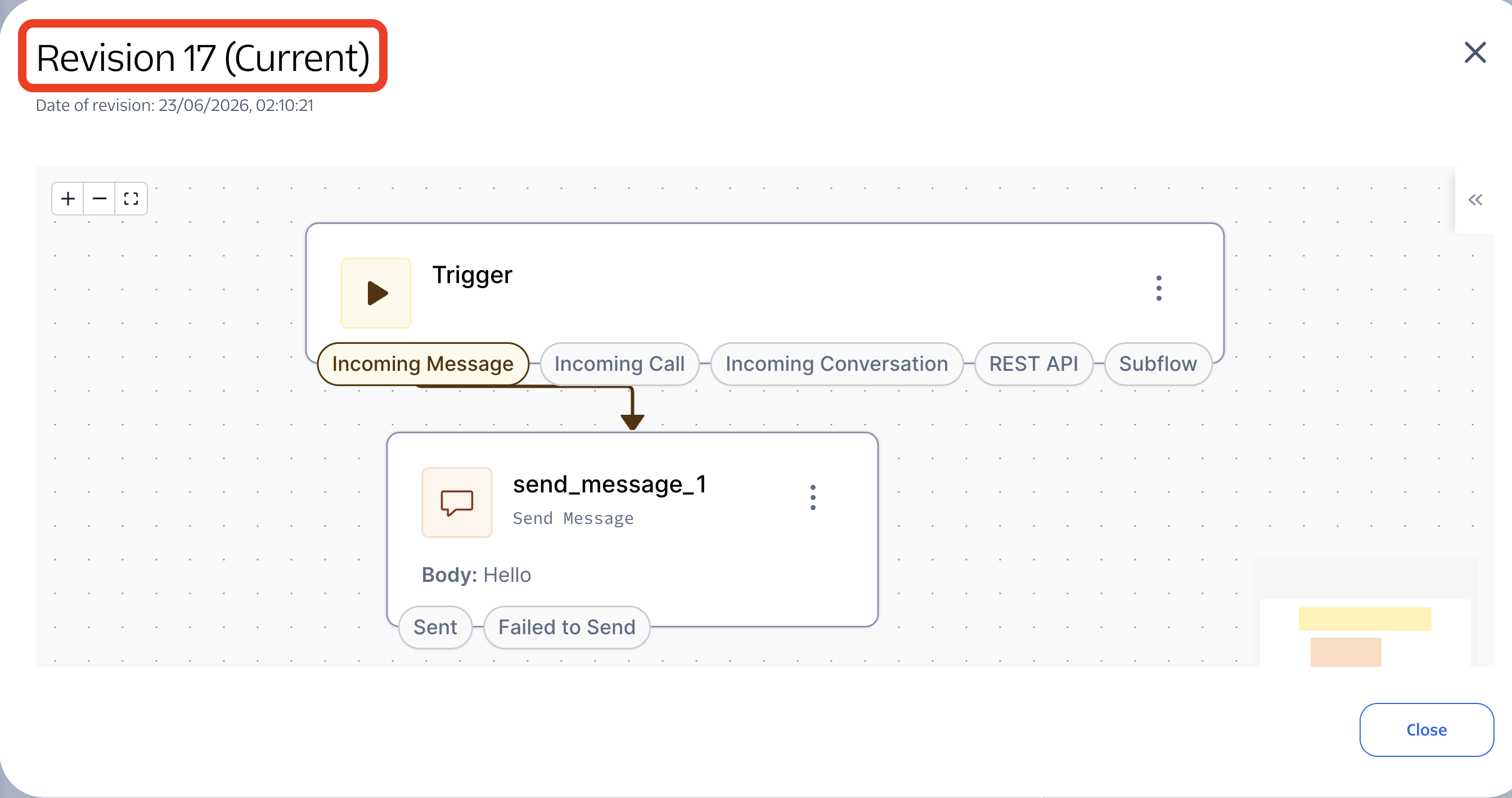

- Click any Revision number to view that version of your Studio flow.
Revert a Studio Flow Revision
-

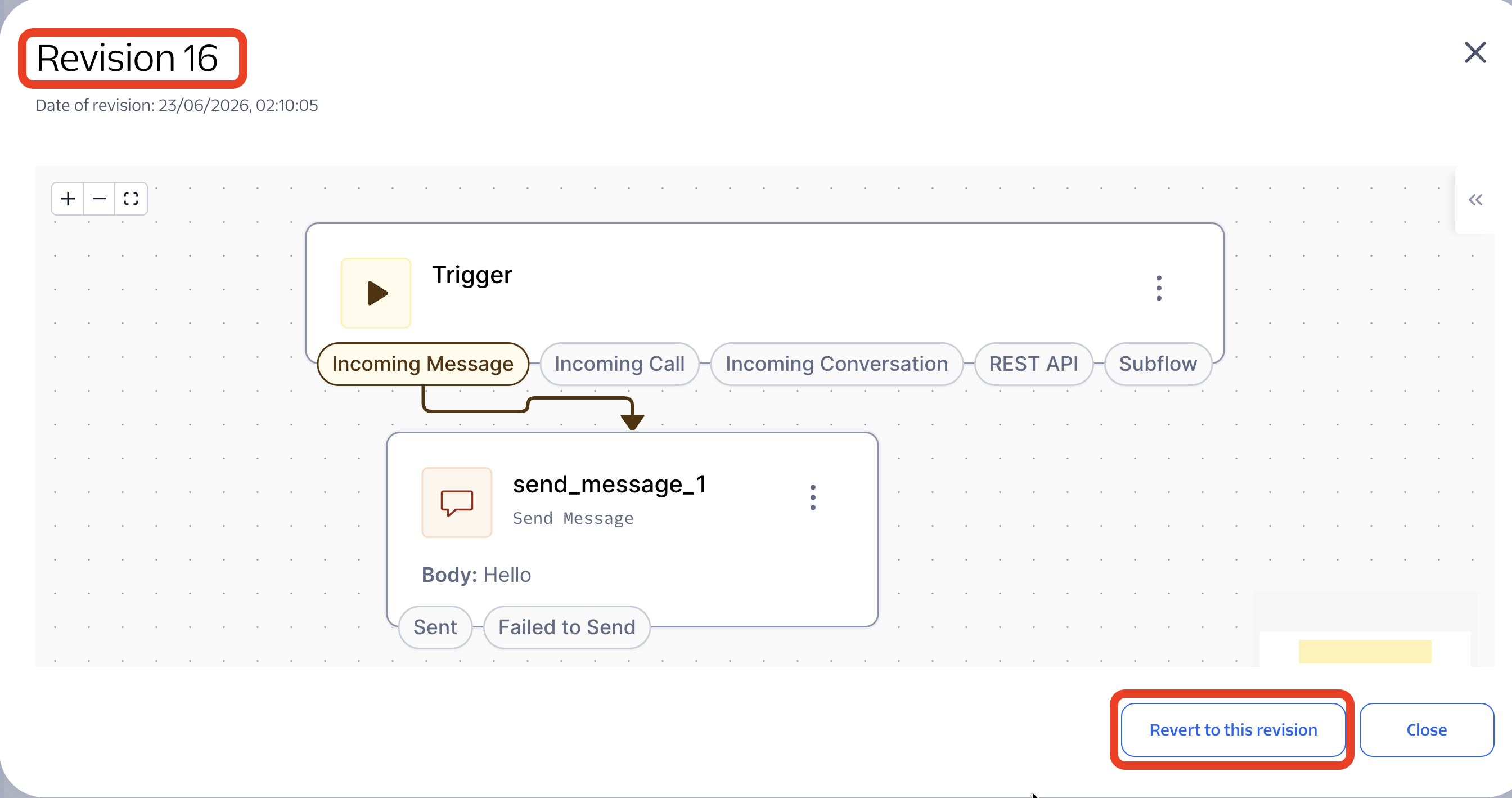

To restore a previous version, click the ‘Revert to this Revision’ button.
- Only previous revisions will show the “Revert to this Revision” button. The current revision (the latest version) will not display the “Revert to this Revision” button.
- Clicking ‘Revert to this Revision’ will update your current version to the selected revision.
- If you revert to a previous revision, it becomes a draft and is not automatically published. To publish, please refer to the section below.
- Each revision is marked as either 'Draft' or 'Published', and you can revert to any revision regardless of its status.
-
Screenshots for reference:
Publish a Studio Flow Revision (Current Revision)

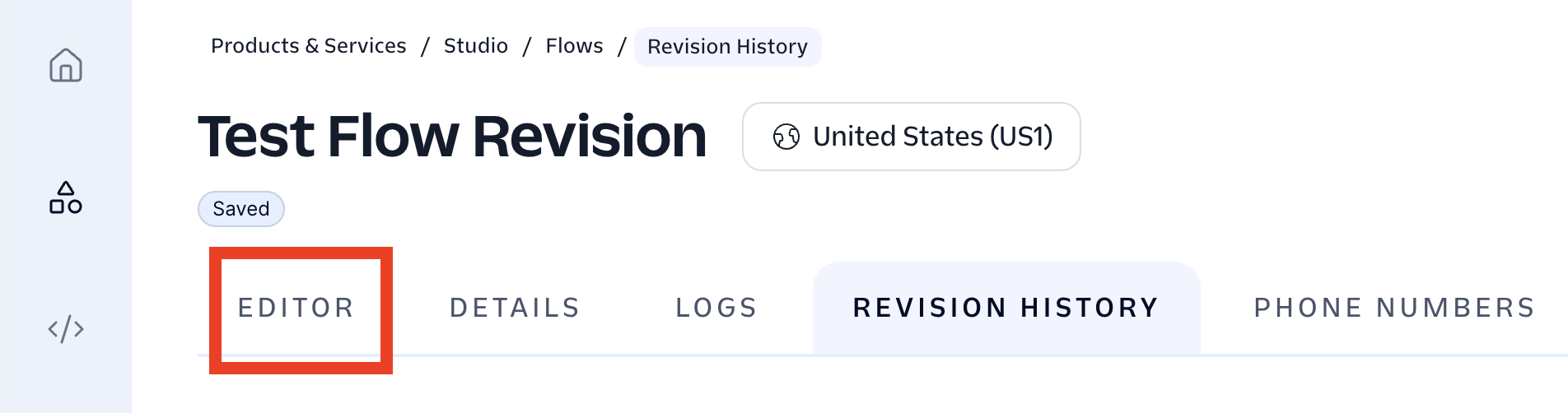

- Navigate to the EDITOR tab for your Studio Flow; your Current Revision (current version) should be visible on the Studio Canvas.

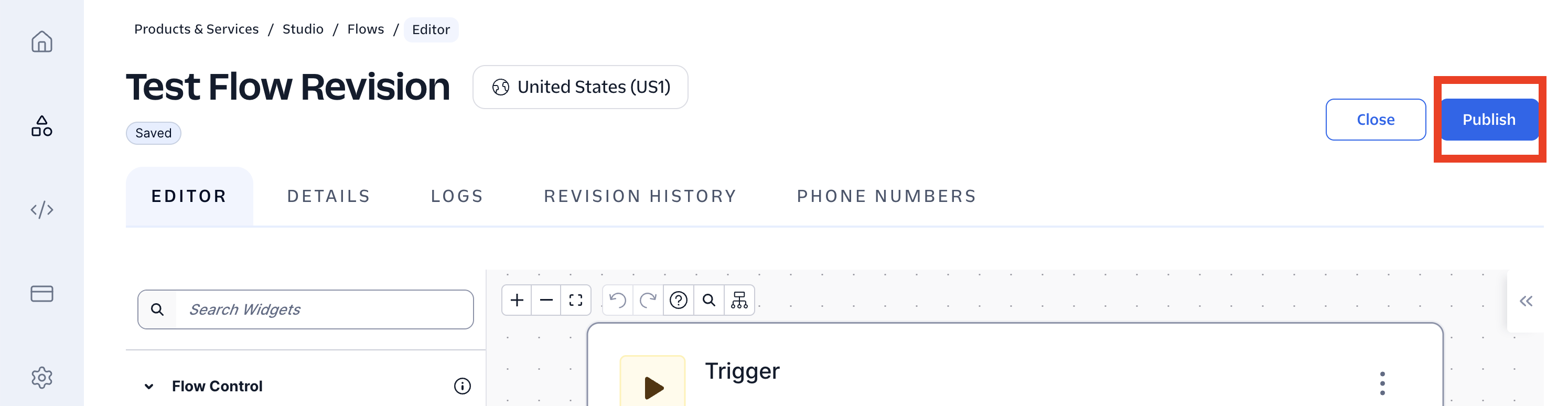

- The Publish button should be visible in the Editor. Click this button to publish your flow.
- Note: The option to Revert and Publish directly from the Revision History is no longer available in the new Studio Canvas. Publishing must always be done from the Editor tab.
-
Screenshots for reference:
Additional Information
- If you do not see the “Publish” button in the Editor, ensure you are not in the Revision History tab.
- If the button is still missing in the Editor, try clearing your browser cache, disabling browser extensions, or using a different browser to rule out local issues.
