Issue:
Are you experiencing a size discrepancy with the Programmable Voice Android SDK?
The reported size footprint for the arm64-v8a architecture is 4.5 MB according to Twilio's documentation.
https://www.twilio.com/docs/voice/sdks/android/3x-changelog#welcome-to-the-programmable-voice-android-sdk.
However, if you build the app bundle and use Google’s bundle tool to generate architecture-specific APKs, the size appears to be closer to 12 MB or more.
Product:
Programmable Voice Android SDK
Cause:
The discrepancy arises because the Android Gradle tools plugin does not compress the .so files within dependencies by default when the dependency is pulled via Maven. This results in a larger APK size when compared to the size reported in Twilio's documentation, which is based on compressed .so files.
If you see a size discrepancy, you may be looking at the size of the .so file when it's not compressed inside the APK. When extracted from the .aar file, the uncompressed size is approximately 11.4 MB, but when compressed inside an APK, it is about 4 MB.
We take the measurements using the APK Scale Tool (more details below). You can use it to verify the same results. If you extract the .so file out of the .aar file, the size is 11.4 MB uncompressed. When its compressed inside of an APK, it's about 4 MB (example shown below).
venv) user_name@XXXXXX delete-me-2 % ls -la jni/arm64-v8a/libtwilio_voice_android_so.so -rw-r--r--@ 1 user_name staff 11446712 Feb 1 1980 jni/arm64-v8a/libtwilio_voice_android_so.so
Resolution:

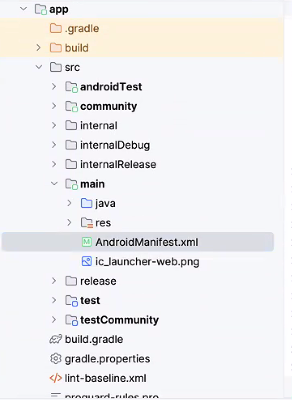

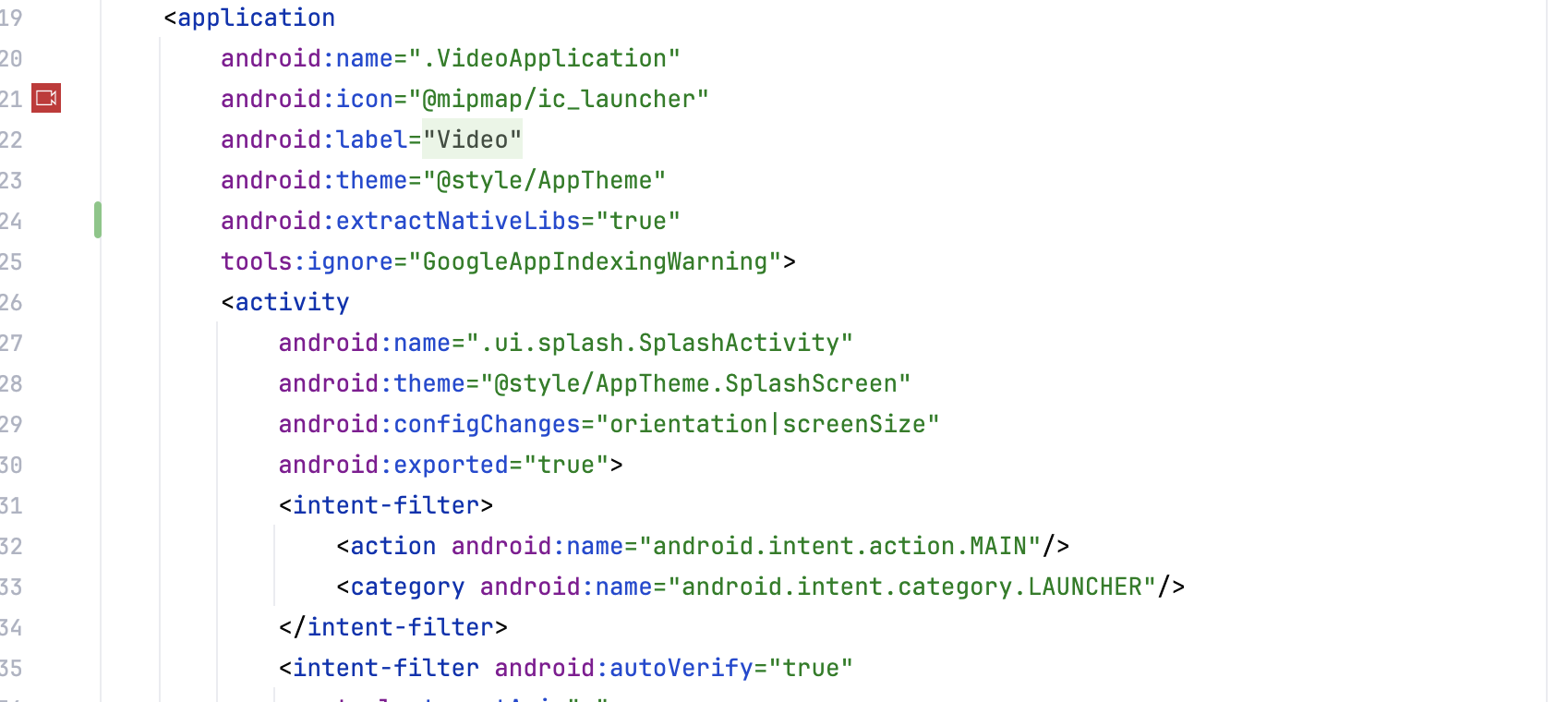

Add the following line to your APK's AndroidManifest.xml as an attribute to the application tag to ensure compression:
android:extractNativeLibs="true"
This attribute will compress the APK's dependency .so files, aligning the size with Twilio's reported 4.5 MB for arm64-v8a.
In addition you can use the APK Scale Tool to verify the size measurements and ensure consistency with Twilio's documentation.
Additional Information:
.so file into an APK and comparing it to another APK without it. We can read how it works and look at its code here:https://github.com/twilio/apkscale
